CS1300 INTRAORAL CAMERA - USB WIRED

CODE: CS5945282

The CS 1300 delivers sharp, high-definition images that help enhance patient communication. Its intuitive handling, rotating head, and adaptive LED lighting make clear image capture fast and simple.

Benefits

HD clarity supports confident conversations
HD imaging makes it easier to illustrate conditions and guide patients toward informed decisions.

Easy access from every angle

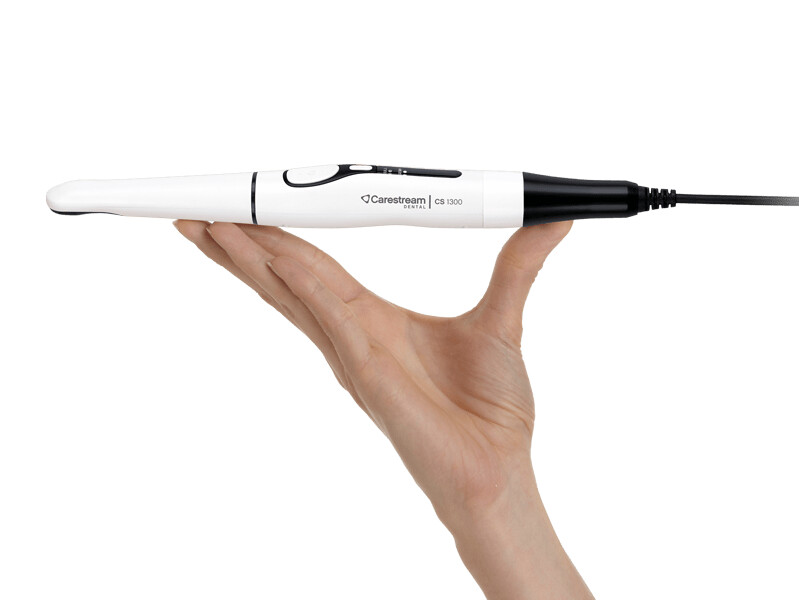

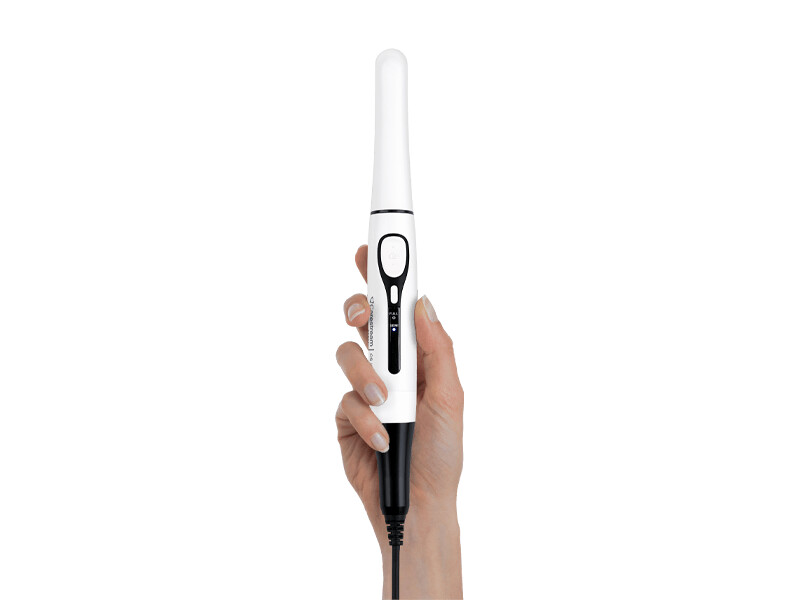

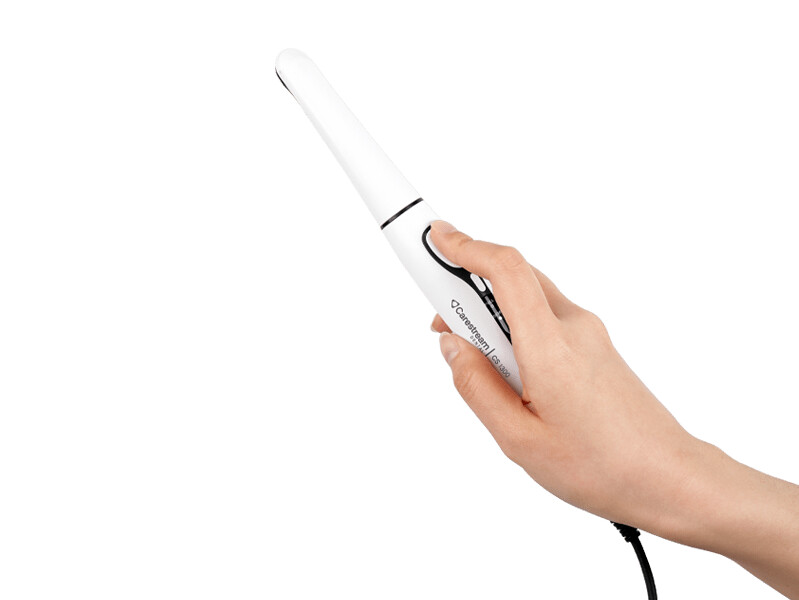

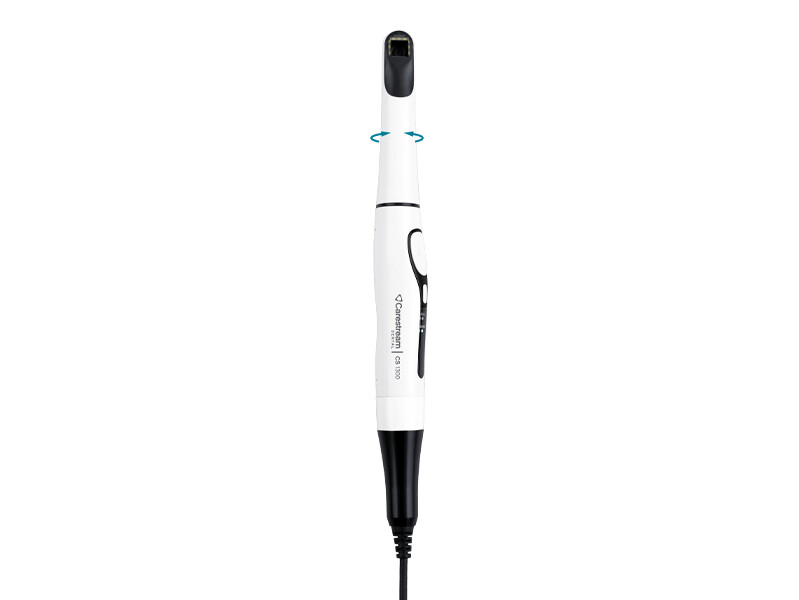

A lightweight, ergonomic design and 280° rotating head help access all areas of the mouth comfortably.

Broad imaging capability
The 10–100 mm focus range and dual autofocus modes capture views from macro details to broader perspectives, including dental arch views.

Lighting that enhances clarity
Nine adjustable LEDs and cool/warm color temperature modes reduce glare and improve visibility.

Simple plug and play use
Driver-free USB connectivity makes setup quick and sharing across operatories effortless.

Technical Specifications

Dimensions
Handpiece weight: Approx. 56 g
Handpiece dimensions: Approx. 202 (L) x 30 (W) x 28 (H)

Camera
Sensor: 5M Pixel CMOS
Lens type: Liquid
Focus: Auto and semi focus
Focus range: Macro to full arch (10 mm to 100 mm)
FOV: 84°
View angle: 90°
Max definition: HD (1280 x 720)
Light source: 9 LEDs adjustable brightness and color temperature

Connectivity
Connection: USB –  Detachable cable
